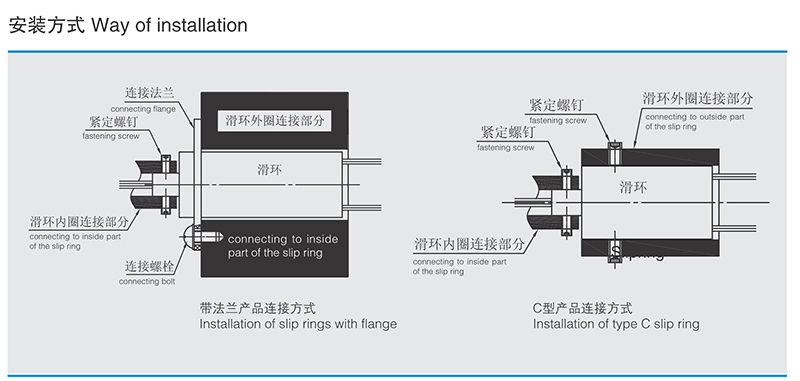

滑環安裝說明 Installation explanation:
■ 我們的帽型滑環轉動扭矩很小,因此可將內圈部分導線保護好后直接用于轉動或固定
The torque on the slip ring is very small, it can be used or fixed straightly after the inner part cables have been protected
■ SRC032及SRC045系列產品可參照該連接方式
SRC032, SRC045 Series can be installed in this way as well
注意事項 Attentions:
■ 滑環環體不得作承重用,環體導線也不得承受外部控力
The slip ring should not be used for load bearing; the cables should not be stressed nor tensed
■ 在滑環安裝時,務必要保護好導線,避免因?qū)w絕緣層損壞而影響產品品質
When installing the slip rings, the cables should be well protected
■ 滑環系精密電氣元件,應使其在一個干燥,少塵的環境下工作。如果環境條件惡劣,應增加防護措施
The slip ring should be used in dry, low dust environment. If working environment is bad, more protection measures should be taken
